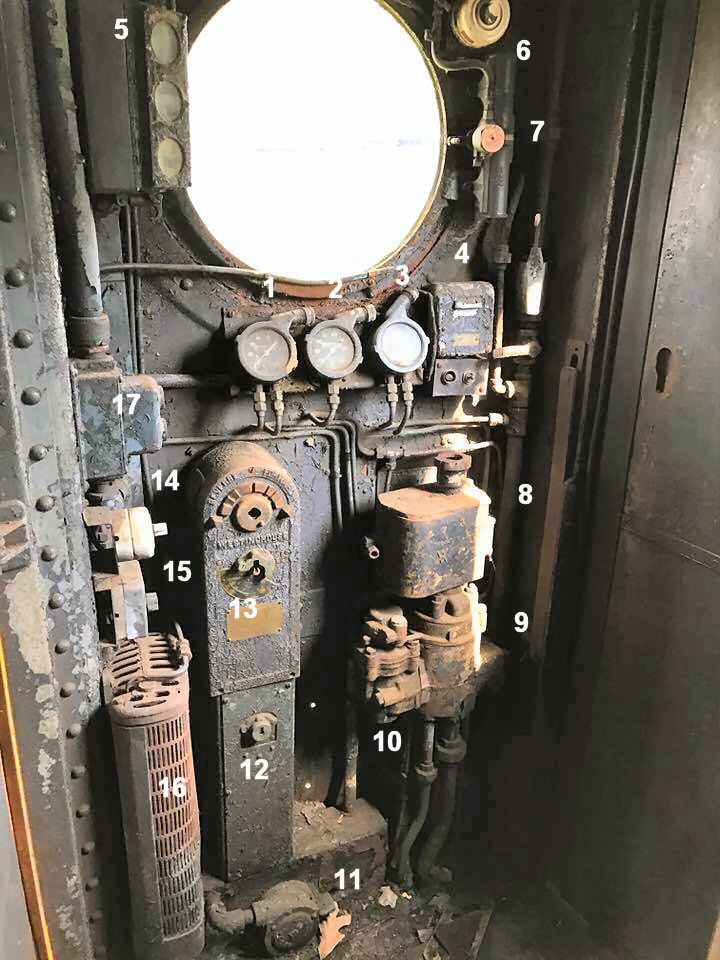

MP54D CAB CONTROLS |
1,2,3) Brake pressure gauges
4) Train doors open/closed indicator light
5) Cab signal lamps appliance - 3 aspects were 15, 30, MAS initially
had position light aspects-clear, approach and restricting
6) Headlamp switch
7) Windshield Wiper pneumatic operating cylinder
8) Brake pipe next to #8 rises to whistle above cab window
9) Square vertical bar to hold the sliding door open.
10) Pneumatic brake valve (electric hold portion above)
11) Deadman pedal
12) Controller actuating butterfly switch lower key on 13
13) Motor control Stand Throttle (controller) (bi-directional, forward clockwise and reverse counterclockwise
14) Cab dome light switch
15) Cab heater switch
16) Cab heater
17) Cab door actuator switch
Info: Robert Sturm, Art Single
|
![MP54D-401_Windsor_7-22-2017__MichaelKam.jpg (127887 bytes)](MP54D-401_Windsor_7-22-2017__MichaelKam_small.jpg)
MP54D #4153 (modernization #401) currently
stored at the CT trolley museum in East Windsor. 7/22/2017 Photo: Michael Kam
![](MP54-4153_cab-signal-indicator_small.jpg)
MP54 #4153 cab signal indicator
3 aspects were 15, 30, MAS
The LIRR MAS code is set for 80 (2023) |
ALCO C420 CONTROL STAND |
1)
Throttle-idle position
2) Dynamic Brake handle-locked out not used
3) Automatic Brake valve-train brake
4) Independent Brake valve-full applied position
5) Head Light switch-rear
6) Head Light switch-front
7) Bell valve
8) Console Light
9) Manual sander valve
10) Console Light
11) Emergency fuel cut off switch
12) Switches-Control-battery-generator field-fuel pump
13) Reverser
14) Air brake gauge-Main Res/Equalizing res
15) Air Brake gauge-Brake pipe/Brake cylinder
16) Air Brake gauge-Supression air
17) Air Brake gauge-Timing Air
18) Amp gauge-Traction
19) Two Horn chains encased in rubber hose-city/country(1)
20) Brake pipe regulating valve
21) ABVCOC (Automatic Brake Valve Cut-Out Cock)
22) Independent brake regulating valve
23) MU2a valve-multiple unit/lead-dead
ALCO C420 control stand
c.1968
(Jay Bendersky-Robert Anderson) |
![C420-205-Stenciled Large Fuel Tank-Port Jefferson-06-14-64 (Arnoux-Keller).jpg (82195 bytes)](C420-205-Stenciled_Large_Fuel_Tank-Port_Jefferson-06-14-64_Arnoux-Keller_small.jpg)
LIRR #205 C420 stenciled larger
capacity fuel tank Port Jefferson 6/14/64 (Arnoux-Keller)
Note (1): There were two ropes with a length of rubber hose
(about 18" each) on them where you would pull them down to sound the horn. One was for the "City" tone, which was lower in volume than the other, "Country" tone which was louder. Both ropes led to separate valves on the cab ceiling. If you grabbed them both together, you could make even more noise.
Further trivia: Because of clearance issues at various locations, the horns were mounted on the engineers side of the
car body, on the side (not the top) of the engine, just ahead of the smoke deflectors. |
![266 KP Cab.jpg (50085 bytes)](266_KP_Cab_small.jpg)

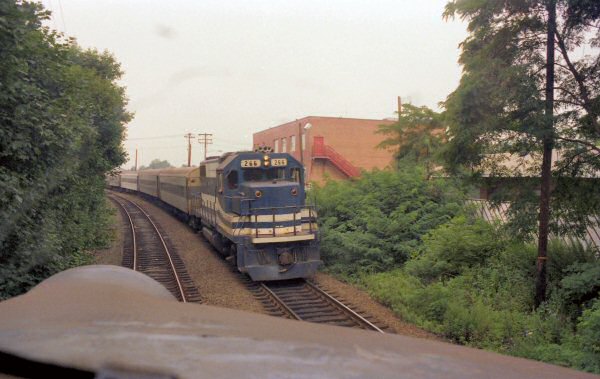

LIRR #266 KP Cab
![View from GP-38 cab.jpg (47389 bytes)](View_from_GP-38_cab_small.jpg)
GP38-2 cab view
Photo: Steve Rothaug
|
![C420-201-cab_Larry-Foran-Train-4-East-Hampton_4-8-1968_RMakse.jpg (52991 bytes)](C420-201-cab_Larry-Foran-Train-4-East-Hampton_4-8-1968_RMakse_small.jpg)
Larry Foran brings train #4 to a stop at East Hampton on July 8, 1968. View is in the cab of L-1 #201. Larry hired on June 25, 1926.
Photo/Archive: Richard Makse |

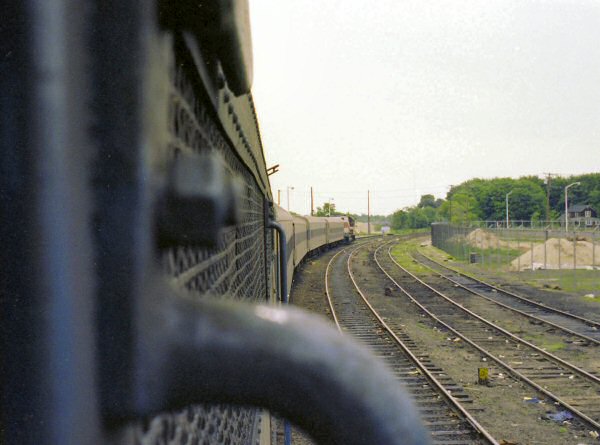

LIRR FA #613 Cab View
![FA Cab Ronkonkoma.jpg (57602 bytes)](FA_Cab_Ronkonkoma_small.jpg)

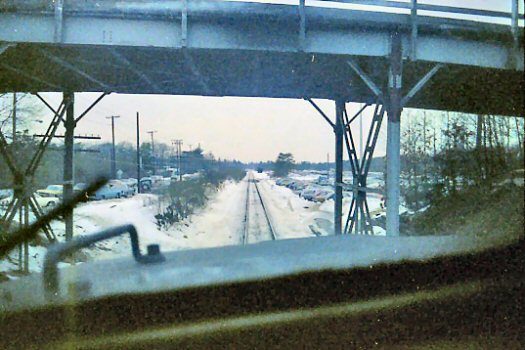

FA Cab Ronkonkoma
|

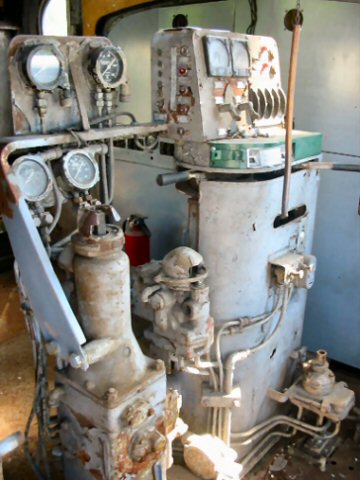

RS3 Control Unit
Photo: Paul Strubeck |
![EMD CONTROL STAND.jpg (78618 bytes)](EMD_CONTROL_STAND_small.jpg)

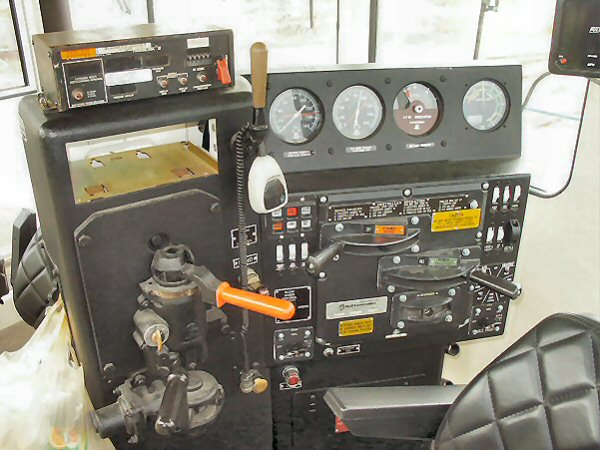

EMD Control Stand
![KP F unit snow.jpg (40634 bytes)](KP_F_unit_snow_small.jpg)

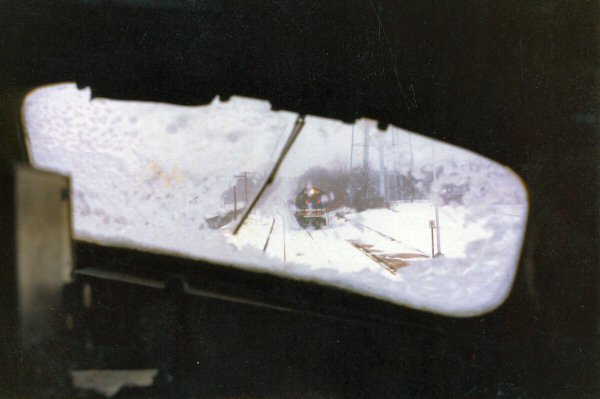

F unit at KP passing a GP38-2 train
|
LIRR #601 09-23-06
Photo: Tim Darnell |
![KP Coal Trestle.jpg (39670 bytes)](KP_Coal_Trestle_small.jpg)

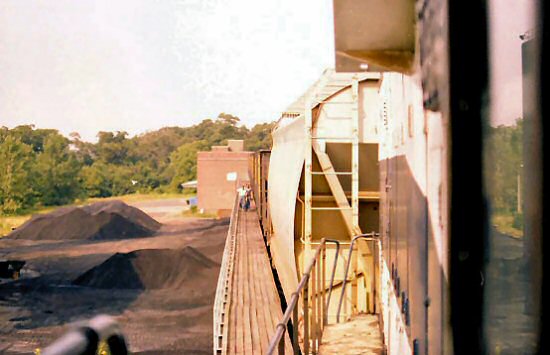

KP Coal Trestle
![Montauk branch through Forest Park.jpg (91847 bytes)](Montauk_branch_through_Forest_Park_small.jpg)

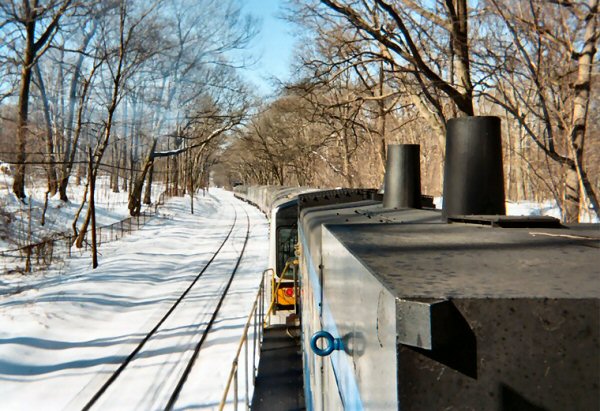

Montauk branch through Forest Park
Photo: Bob Andersen
|

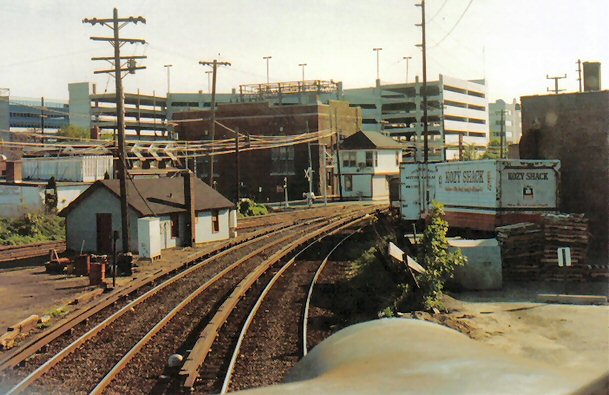

Approaching Nassau Tower from Oyster Bay
Branch Cab of F7 #621
05-14-1988 Photo: John Fusto

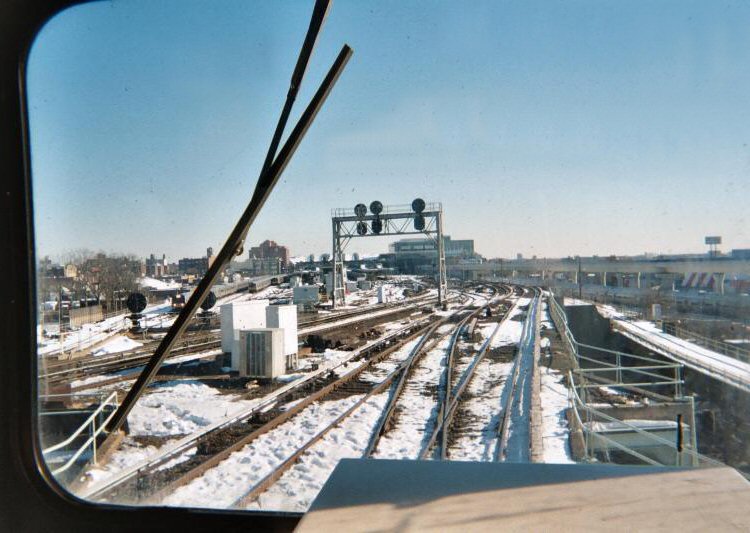

East of Morris Park MP15AC #168
03-2005
Photo: Bob Andersen
|
![GP38-2-FA2-605-Train-From-Cab-Montauk-1-1990.jpg (50528 bytes)](GP38-2-FA2-605-Train-From-Cab-Montauk-1-1990_small.jpg)

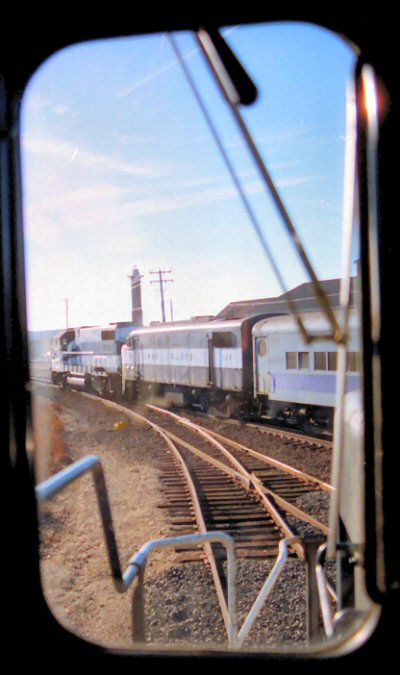

LIRR GP38-2 #?, Alco FA2
#605, coupled on train westbound at Montauk, NY. View from
locomotive cab window. 01/1990
Thomas Collins photo, Dave Keller archive
|

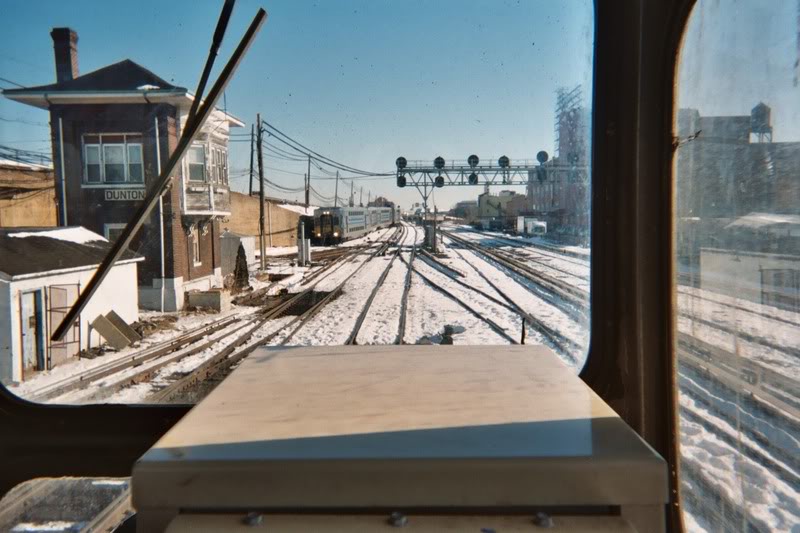

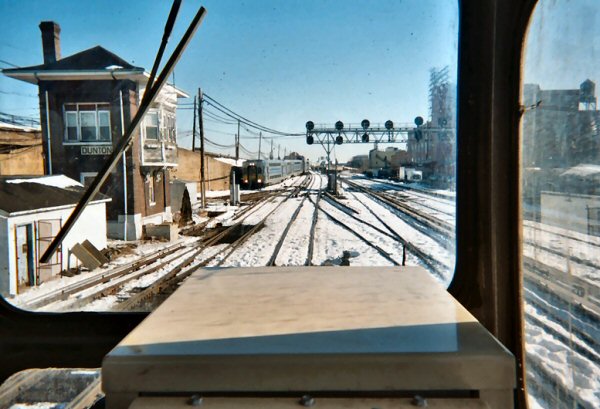

LIRR #167 Morris Park
03-2005
Dunton Tower Photo: Bob Andersen
![FPond03-2005_takingM-7stolicityarchstreet-bobanderson.jpg (52091 bytes)](FPond03-2005_takingM-7stolicityarchstreet-bobanderson_small.jpg)
Fresh Pond 03-2005 Taking M-7s to
Arch Street, LI City
Photo: Bob Andersen
![nya155cab 11-22-2003_JoeTischner.jpg (210344 bytes)](nya155cab_11-22-2003_JoeTischner_small.jpg)

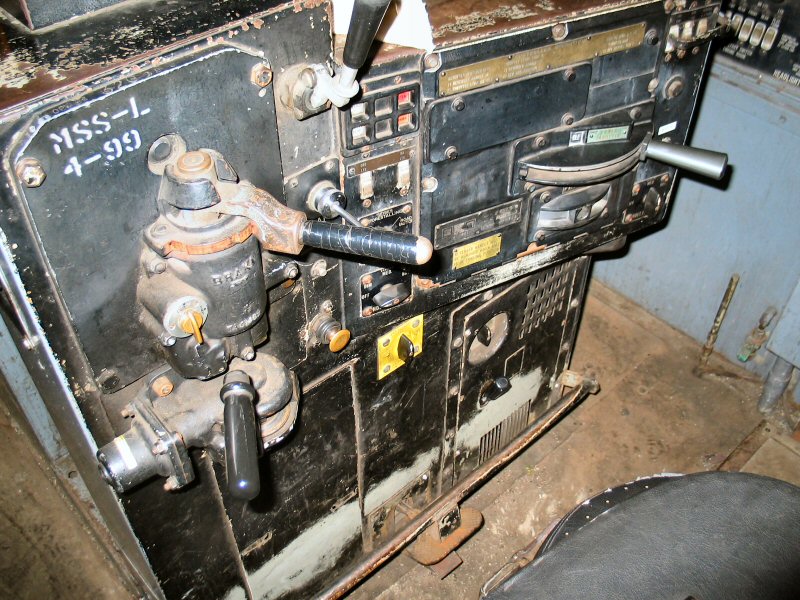

NYA MP15 #155
cab 11/22/2003 Photo: Joe Tischner
|
LIRR F7 Smithtown
Photo: Len Torney
![ROW-Tracks-Trains-Approaching-Speonk-7-1990.jpg (58613 bytes)](ROW-Tracks-Trains-Approaching-Speonk-7-1990_small.jpg)

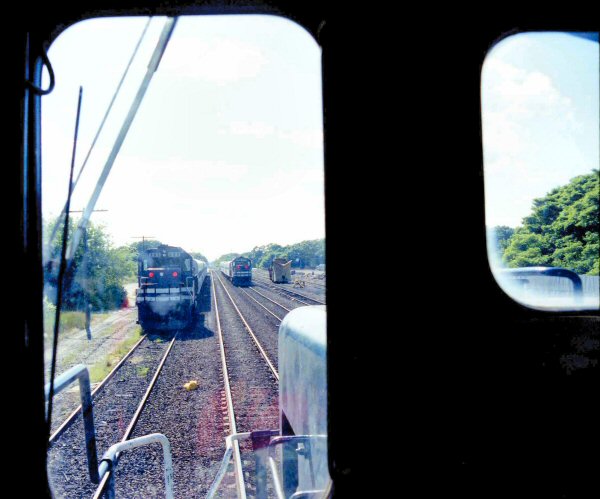

ROW Approaching Speonk 07/1990
Thomas Collins photo, Dave Keller archive
![mp15 11-22-2003_JoeTischner.jpg (192020 bytes)](mp15_11-22-2003_JoeTischner_small.jpg)

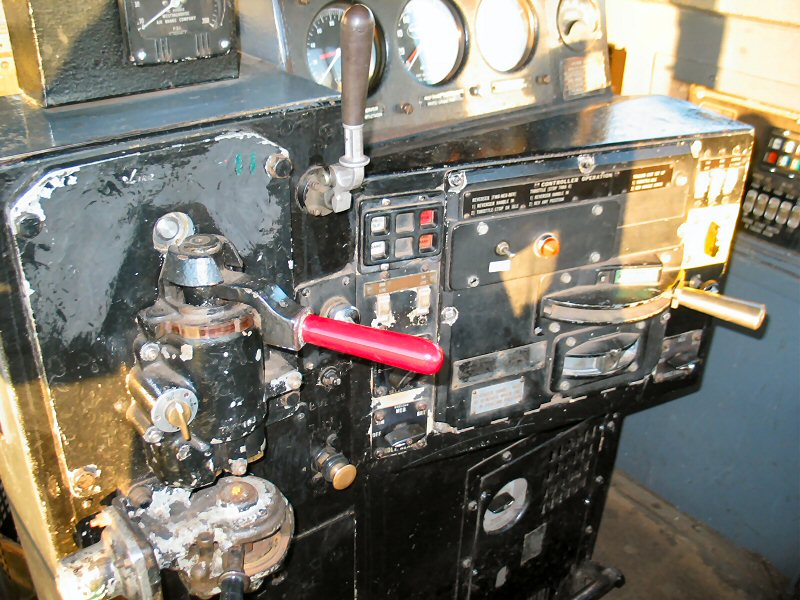

MP15 11/22/2003
Photo: Joe Tischner
|
![ROW-Atlantic Avenue El.jpg (65586 bytes)](ROW-Atlantic_Avenue_El_small.jpg)
ROW-Atlantic Avenue EL
![SW1001_cab-view-Harold_12-25-2003_JoeTischner.jpg (166818 bytes)](SW1001_cab-view-Harold_12-25-2003_JoeTischner_small.jpg)

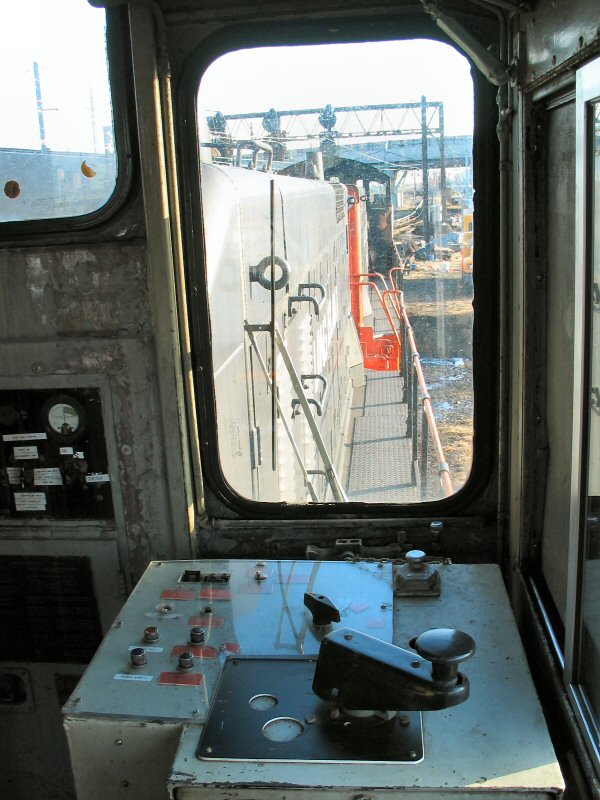

SW1001 cab view at HAROLD 12/25/2003
Photo: Joe Tischner
|

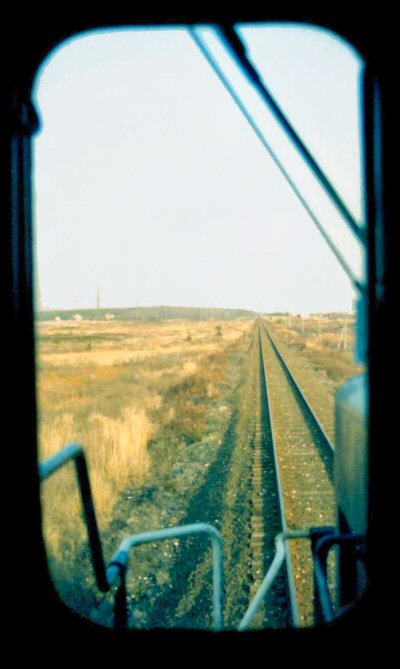

LIRR GP38-2 #? near
Montauk, c.1989
Thomas Collins photo, Dave Keller archive
|
Engineer Arthur J. Sanwald
in the cab of a GP38-2 c.1989
Thomas Collins photo, Dave Keller archive
![GP38-2-269-Control Panel-4-91.jpg (55468 bytes)](GP38-2-269-Control_Panel-4-91_small.jpg)

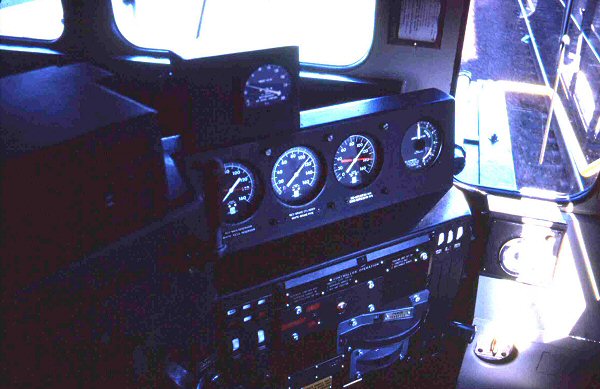

GP38-2 #269 04/1991
Thomas Collins photo, Dave Keller archive
|

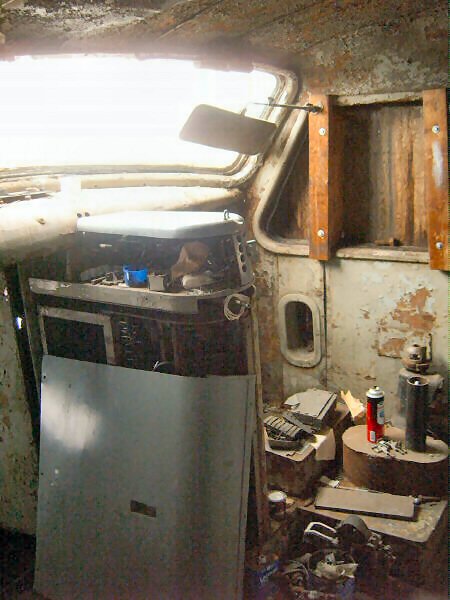

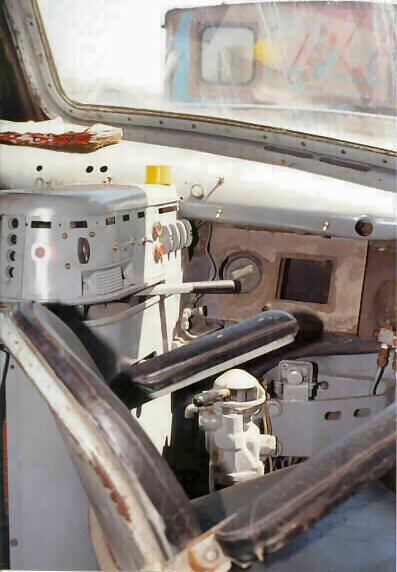

LIRR #602 04-24-04
Photo: Tim Darnell
GP38-2 #272 cab 7/08/88 Photo:
Edward Hand
|

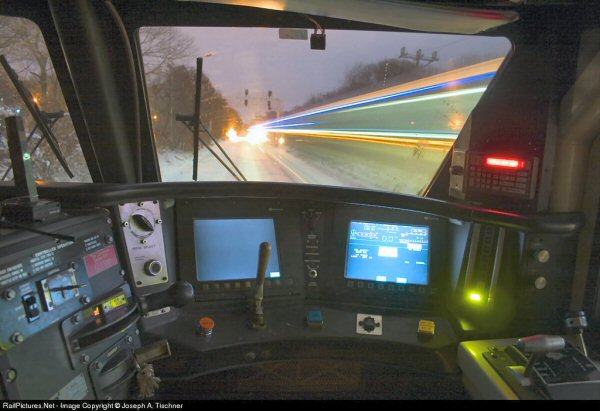

LIRR DE30AC #417 03/07/1992
Port Jefferson Branch
LI City Photo:
Steve Kay
|

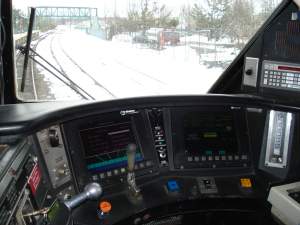

LIRR
DE30AC #417 crew photo 03/07/1992
Photo: Joe Tischner
|
![KOviewwest2homesignals-wash-Ronkstation.jpg (83234 bytes)](KOviewwest2homesignals-wash-Ronkstation_small.jpg)

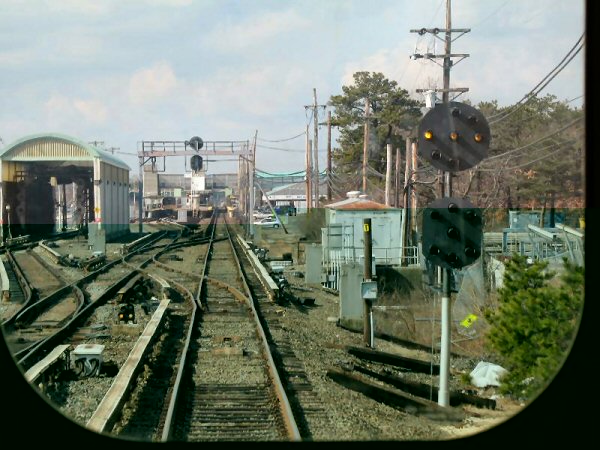

KO view west two Home Signals, Wash Rack, Ronkonkoma Station
Cab View 04/2008 ![](FA-cab_westbound-PD-Patchogue_7-1989_JayBendersky_small.jpg)
FA cab westbound at PD Patchogue 7/1989 Photo/Archive: Jay Bendersky |
LIRR #400 GE
44 tonner cab
|
LIRR #400 GE
44 Tonner cab controls
|
![Valley-Tower_ M3_window-viewE.jpg (90767 bytes)](Valley-Tower__M3_window-viewE_small.jpg)

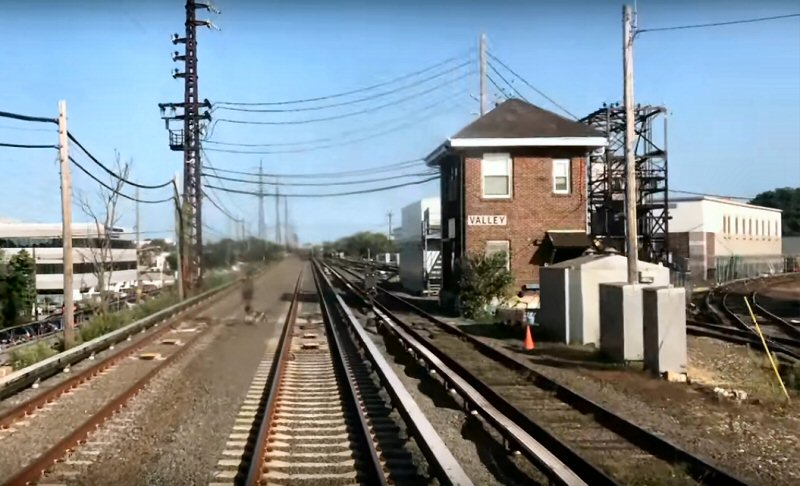

VALLEY Tower M3 cab window view E
|
![FM-CPA20-5-2005_Locust-Valley_viewE_cab-shot_c.1952_Emery-SUNY-Stony-Brook.jpg (97166 bytes)](FM-CPA20-5-2005_Locust-Valley_viewE_cab-shot_c.1952_Emery-SUNY-Stony-Brook_small.jpg)
Cab shot of FM CPA20-5 #2005 Locust
Valley View E c.1952 (Emery-SUNY-Stony-Brook)
![](Greenport-DE30AC-cab_6152021_JasonBaxter_small.jpg)

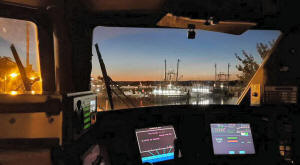

DE30AC cab view of Greenport 6/15/2021
Archive: Jason Baxter |
![](Progress-Rail_PR20B_NYA-300_cab_4-2019_Newsday_small.jpg)
Progress Rail PR20B #300 NYA cab at Fresh Pond
4/2019 Photo: Newsday
![](DM30AC-512-cab_Lower-Montauk-Branch_3252022_JasonBaxter_small.jpg)

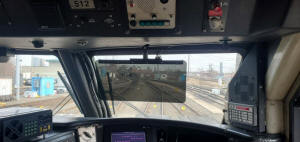

DE30AC #512 cab view of Lower Montauk 3/25/2022
Archive: Jason Baxter
|
![](M9-cab_2021_EliHanson_small.jpg)
M9 cab 2021 Photo/Archive: Eli Hanson |
