LIRR Freight Yards

      LI City -1955

The freight on Long  Island was complicated by the fact that there were several western terminals, so to make things easier, they split the freight operations into two divisions - West of Jay and the Island.

Anything bound for the Island went through Holban, so the yardmaster would block traffic off of the floats for Holban and then for the road freight crews out of Yard A and Pond. They once had a great deal of traffic just on the west end, with freight terminals at Bushwick, Degnon, Maspeth, etc., so that would more than keep the Yard A yardmaster busy, then having to worry about what was needed at Holban.
Although we are now blessed with organized travel and it is much easier to plan your trip on sites like rather than a series of frantic trips to and from train terminals, back then things were very complex and fast-moving. I believe at its heyday Yard A had two crews, one at either end of the yard just to block out the yard, and they kept the hump that was there busy.

"...Bliss was used by LIRR freight and had an engine terminal so that steam engines did not have to run reverse all the way to Morris Park. This was also gone by 1957. In my time, Bliss yard was used to store cars for Phelps Dodge, Van Iderstine and other customers between Greenpoint Ave and PD. Also cars for Murers sidings were stored here. Crews reported at Yard A and brought cars to Bliss before making up their trains for their respectful switching areas.
The afternoon Bliss job made up the train for the crew that switched Phelps Dodge..." JJ Earl

"...There was a yard alongside Borden Ave. known as the Wheelspur Yard where trains for Sunnyside were made up and stored until ready for the PRR crews. I'm not talking commuter trains here but the long haul DC and beyond with fifteen cars or more. Long Island crews made up these trains and took them to Sunnyside when they were needed. Old track diagrams show tracks extending out into Newtown Creek on piers, possibly taking shipments from boats to be loaded onto rail cars. (see map: Wheelspur Yard) This yard was gone by 1957 (when I hired on)..." JJ Earl

"...Back to Wheelspur. At the end of December  1941, after being hired as a fireman, I was sent to fire one of the steamers at the east end of the yard. Three Pennsy locomotives were used to heat yarded trains. These were right near the Montauk Cut-off and the two drawbridges. Hard to believe Sunnyside Yard ran out of room due to its size.

View east: Arch Street team yard lower left, Montauk Cut-off in center, PRR Sunnyside yard center top, Yard A (North Yard) LIRR top left of center.  Owner: Historic American Engineering Record (HAER) , Photographer: Jack E. Boucher April 1977 taken from helicopter.  Info and photo courtesy: Nick Kalis

Did you know at times these Pennsy trains were turned by pulling out of yard and shoving them east on the Montauk Branch past Bliss tower and then reversed to the Main Line cutoff to F tower and pulled up on leads far enough for GG-1s to get them on trains to head westbound. I know of at least one train that was handled as it had not gone around the loop which would have kept the Observation car on the rear ( This was the reason for the FANCY MOVE BY BLISS ).  As to Bliss Yard I never saw or knew of any passenger equipment laying over there. Maybe some cars that were being scraped were there..." Mark Smith

There was once more passenger, traffic in and out of  LI City, so it was a spot to dump overflow from the yard or shopped equipment. It was also a place for a freight to leave part of his drag when working the freight in the area, a place to duck in the clear while waiting for a shot to get on the main, among other reasons...

Fresh Pond was there because of the interchange with freight from the NH off of the Hellgate, freight from the floats at Bay Ridge and also the lead to Bushwick.

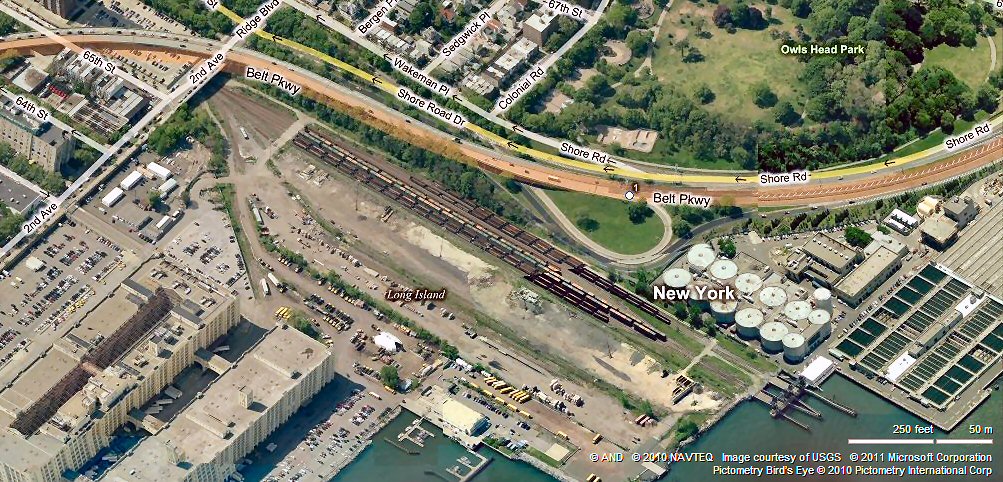

Bay Ridge Yard
West Side Yard
C Yard
Long Island City Yard
Arch Street Yard
D Yard
E Yard
Johnson Ave Yard
Hicksville Yard
Hillside Yard
Belmont Yard
Ronkonkoma Yard
Greenport Yard
Fresh Pond Yard
*Blissville Yard
*Maspeth Yard
Storage Yard
Advance Yard
Receiving Yard
Morris Park Yard
Morris Park Boneyard
Holban Yard
Dunkirk Yard
Freeport Yard
Babylon Yard

Speonk Yard
Montauk Yard
VD Yard
Far Rockaway Yard
Long Beach Yard
Shea Yard
Port Washington Yard
Port Jefferson Yard
Oyster Bay Yard
Hempstead Yard
West Hempstead Yard
*Freemont Yard
*Varick Ave Yard

* Rarely used by LIRR

Other places trains may be layed up (not considered yards though)
Great Neck

Research: Nick Kudreyko


West Islip view west
c. 1980's
Photo: Steven Lynch

Aerial view Babylon Yard 10/09/09 Photo: Dave Morrison


View looking west c. 06-97
Photo: B. Ente


Bay Shore 1978
Photo: Steven Lynch




Camp Upton 1918



H10s Freight 1944


 Roundhouse view East c.1906


NYA RR West John St- 10/28/2010
Photo: Al Castelli


North Yard 1977
Photo: Tim Darnell


Photo: Steven Lynch 1980

signholban yard.jpg (35508 bytes)


March 8, 1904 Ziel 148th Jamaica 4-4-0.jpg (18935 bytes)
March 8, 1904  148th St. Jamaica
Collection: R. Ziel


View east from Empire State Building


NYA 1997 View West
Photo: B. Ente

Yard A 3-29-46.jpg (24107 bytes)
03/29/1946 View West


Photo: Steven Lynch c. 1980's

Mpark Dec 29,1908 Ziel.jpg (24141 bytes)
Morris Park Dec 29,1908
Collection: R. Ziel


View East 1952
Collection: Dave Keller


View West c. 1940's
Photo: Frederick Weber  Collection: Dave Keller





Christmas Day 1998



ROW Speonk

Speonk view East 06/01/2006


Connect_ track_ Q tower and Harold Sunnyside Yard 5-8-02.jpg (105761 bytes)
Connect track Q tower and Harold Sunnyside Yard 5-8-02
Photo: Steve Kay

03/29/1946 View West
Sunnyside Engine Facility


varick ave yard.jpg (60473 bytes)
Varick Ave


View West 2005
